H04N 13/31

Definition

Diese Klassifikationsstelle umfasst:

Autostereoskopische Displays, die Parallax-Barrieren verwenden. Eine Parallax-Barriere ist eine Vorrichtung, die vor oder hinter einer Bildquelle, wie z.B. einem Flüssigkristalldisplay (LCD), angebracht wird, damit dieses ein stereoskopisches Bild oder ein multiskopisches Bild anzeigen kann, ohne dass der Betrachter eine 3D-Brille tragen muss.

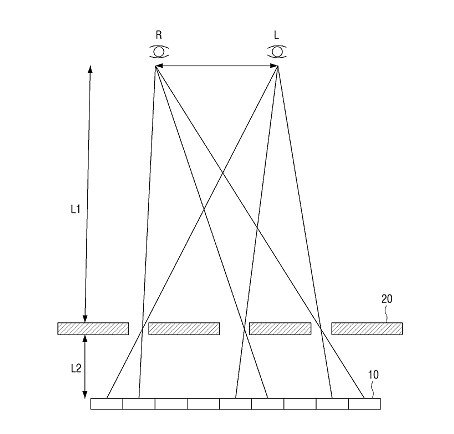

Bildreferenz:H04N0013310000_0



(Ein Anzeigeschirm 10 und eine Parallax-Barriere 20)

Spezielle Klassifizierungsregeln

Diese Gruppe sollte immer dann zugeordnet werden, wenn die Parallax-Barriere eine vor der Bildquelle angebrachte Vorrichtung ist. Diese Gruppe sollte in Verbindung mit anderen Gruppen von H04N 13/30 zugeordnet werden, z.B.:

H04N 13/31

Definition Statement

This place covers:

Autostereoscopic displays which use parallax barriers. A parallax barrier is a device placed in front of or behind an image source, such as a liquid crystal display, to allow it to show a stereoscopic image or multiscopic image without the need for the viewer to wear 3D glasses.

Bildreferenz:H04N0013310000_0



(A display panel 10 and a parallax barrier 20)

Special rules of classification

This group should always be assigned when the parallax barrier is a device placed in front of the image source. This group should be assigned in combination with other groups of H04N 13/30 for example:
