Systeme bestehend aus einer Infrarotstrahlung emittierenden Quelle und einer (Anordnung von) Solarzelle(n) mit geringem Bandabstand, die spezifisch auf das von der Quelle emittierte Infrarotspektrum empfindlich reagiert/reagieren.
Allgemein sind zwei Arten von Systemen am weitesten verbreitet: eines, bei dem ein spezieller Emitter (aus feuerfestem Material) erhitzt wird (z. B. durch eine Gasflamme) und ein besonders ausgebildetes Infrarotspektrum emittiert; das andere, bei dem das Sonnenlicht in einem Hohlraum konzentriert und durch die innerhalb des Hohlraums angeordneten Solarzellen umgewandelt wird.
Diese Unterklasse wird zum Klassifizieren von Schriften verwendet, die Aspekte der Systeme, einschließlich der spezifischen Strahler, umfassen.
Schriften, die für Infrarotstrahlung optimierte photovoltaische Zellen beschreiben, werden in diejenigen Gruppen für Solarzellen klassifiziert und aufgeführt, die die Zellstruktur oder das Zellmaterial umfassen ( H01L 31/06 und Untergruppen).
Zellen für TPV [Thermophotovoltaik], die unabhängig vom TPV-System beschrieben werden, sind in die entsprechenden Gruppen zu den Materialien, Struktur usw. ( H01L 31/068) zu klassifizieren, da sie sich lediglich auf Solarzellen beziehen, die spezifisch auf IR (IR bildet ebenfalls einen Teil des Solarspektrums) empfindlich reagieren.
Photovoltaische Zellen besonders ausgebildet zur Umwandlung von oder zum Ansprechen auf Infrarot-Strahlung | H01L 31/00 |
Thermoelektrische Bauelemente | H10N 10/00 |
Brenner | F23D |
TPV | Thermophotovoltaik |

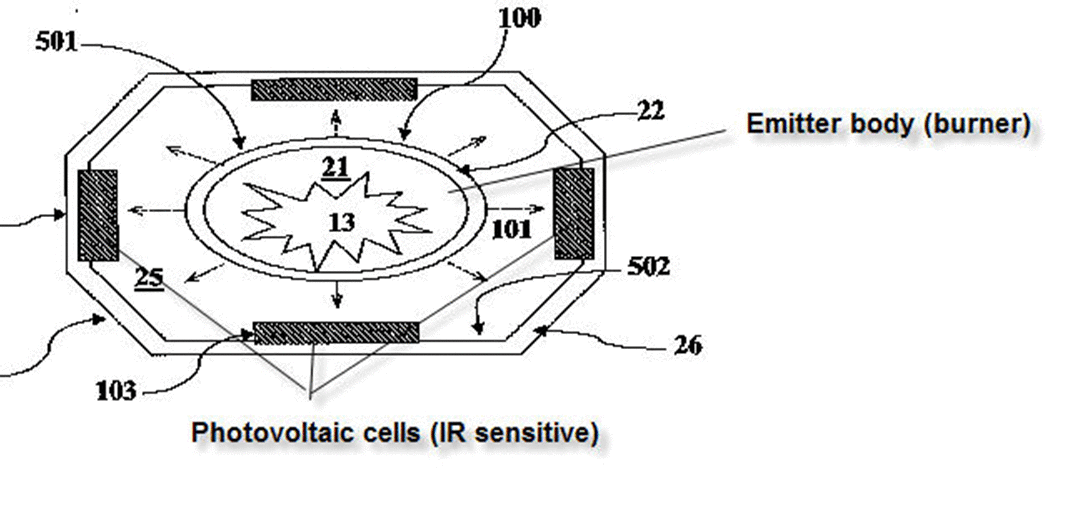

Systems formed by an infrared radiation emitting source and by a (an array of) low band-gap solar cell(s) which are specifically sensitive to the infrared spectrum emitted by the source. Generally two types of system are the most common one: one in which a special emitter (of refractory materials) is heated (e.g. by a gas flame) and emits a specially adapted infrared spectrum, the other in which the solar light is concentrated in a cavity and converted by the solar cells situated in the cavity.
This subgroup is used to classify documents covering aspects of the systems, including the specific radiators.
Documents featuring photovoltaic cells optimized for IR radiation spectrum are classified and found in the solar cell groups covering the cell structure or the cell materials ( H01L 31/06 and subgroups).
Cells for TPV described independently from the TPV system are classified in the groups according to materials, structure, etc ( H01L 31/068) since they merely refer to solar cells specifically sensitive to IR (IR forming also a part of the solar spectrum)
Photovoltaic cells specially adapted for conversion or sensing of infra-red [IR] radiation | H01L 31/00 |
Thermoelectric devices | H10N 10/00 |
Burners | F23D |
TPV | Thermophotovoltaic |
